Variable-Speed Fans
E14
Get the airflow you need, at the speed you want it. Patterson Variable-Speed Fans combine our proven industrial fan designs with an electronically commutated (EC) motor, giving you greater control over airflow without changing what makes a Patterson a Patterson.
Need a different motor, color, switch, or other custom option? Ordering large quantities? Call 800-768-3985 or Get a Custom Quote!
Advantages
Variable Speed Control
Multi-Voltage Flexibility
Built-in Motor Protection
Same Patterson Performance
SAME PATTERSON AIRFLOW. YOUR SPEED.
More Control Without Overcomplicating It
Sometimes you need everything a fan has. Sometimes you don't.

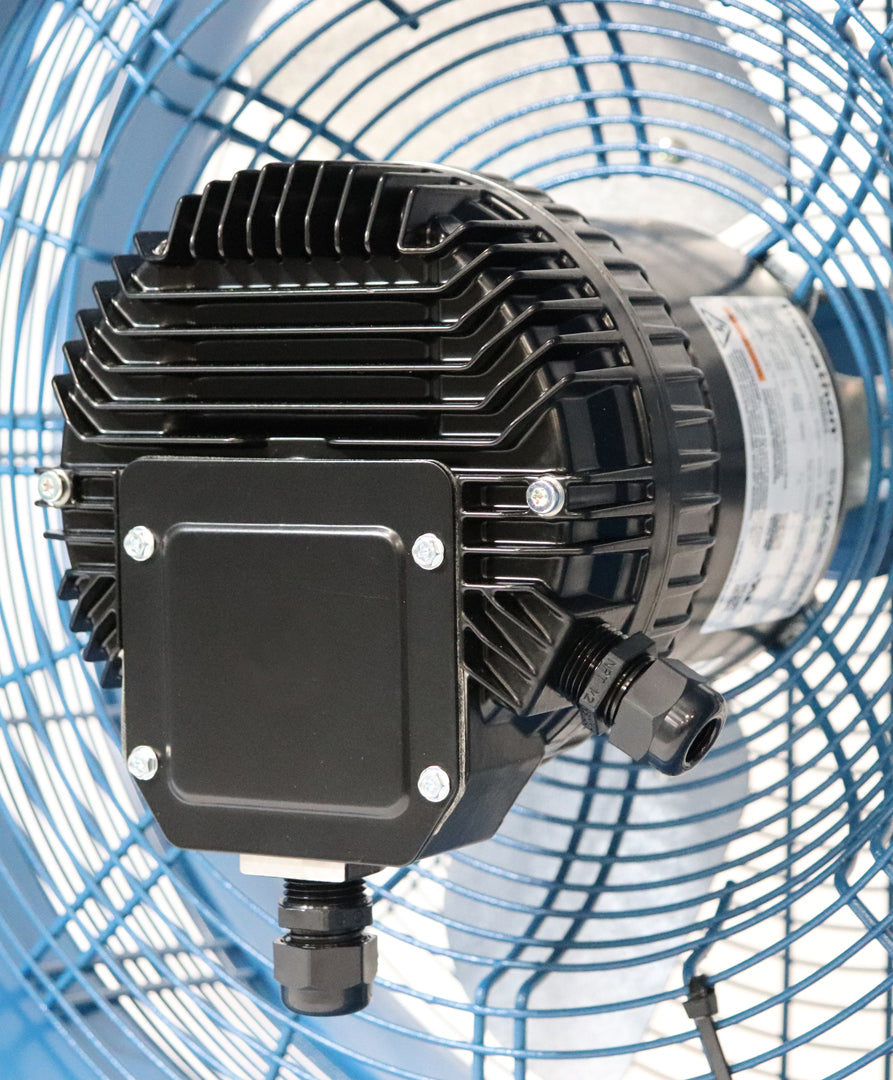

Patterson Variable-Speed Fans use an EC (Electronically Commutated) motor to give you more control over your airflow, allowing fan speed to be adjusted to better match the job, space, or conditions. Turn it up when temperatures climb, or more circulation is needed. Dial it back when you simply need to keep the air moving.
And because these are still Patterson fans, you're not trading performance for control. You're getting the same industrial fan platforms built for demanding environments... now with a motor designed to give you greater flexibility.
For facilities requiring more advanced controls, the EC motor can also integrate with several control methods, including potentiometer, 0–10VDC, 4–20mA, PWM, and MODBUS.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
Information
Share contact information, store details, and brand content with your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Key Features
- Electronically commutated (EC) variable-speed motor
- Adjustable airflow to fit changing conditions
- High-Velocity models available in 14", 18", and 22"
- Available on Patterson Cage Fans
- 1/2 HP EC motor
- 115–277V single-phase operation
- Automatically adapts to incoming line voltage
- Dual-frequency 50/60Hz capability

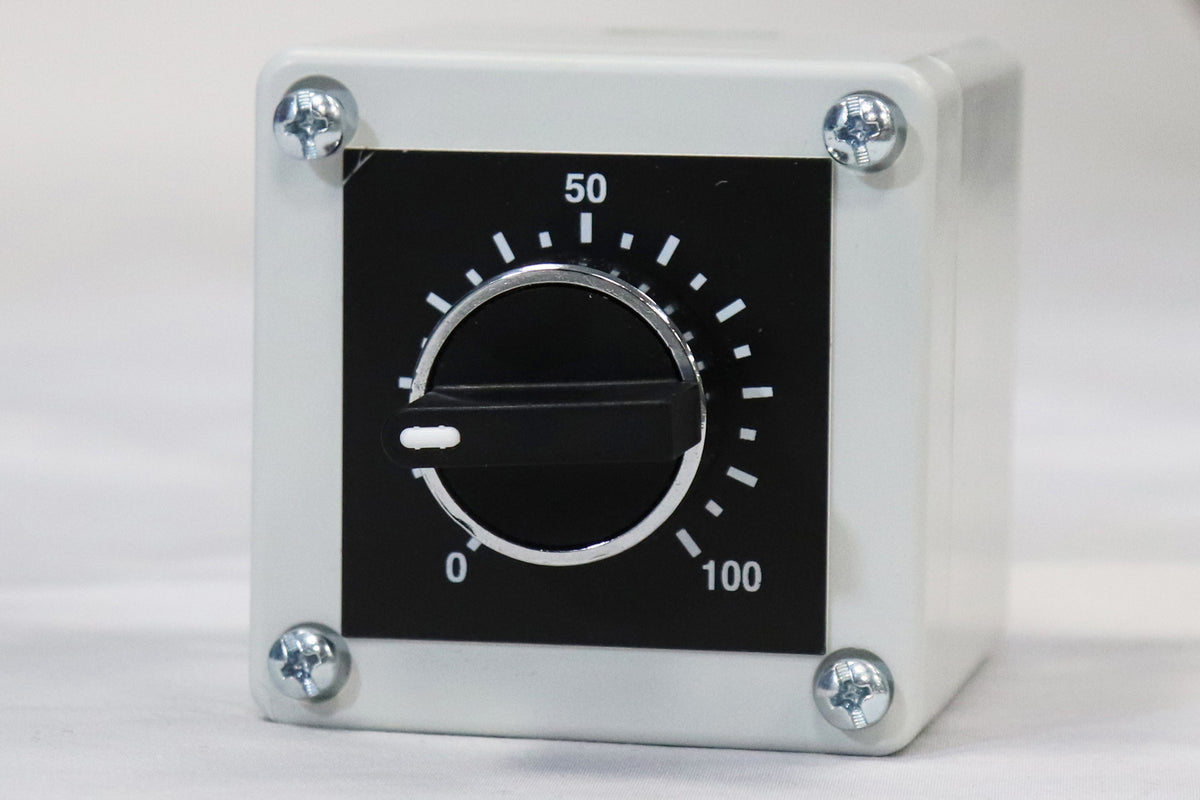

- Optional speed controller knob
- Multiple control options for system integration
- Built-in over-current, thermal, locked-rotor, over-voltage, under-voltage, and start protections
Models & Specs

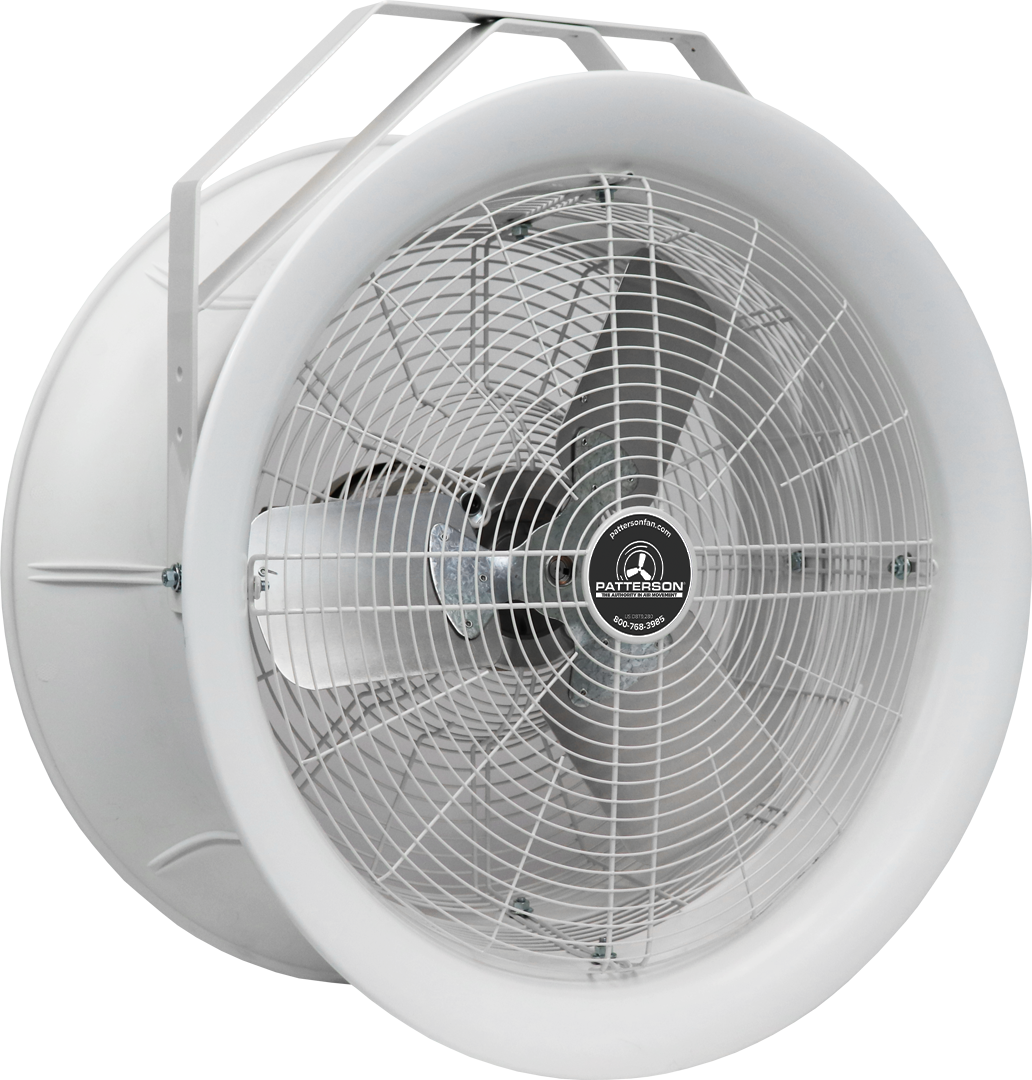

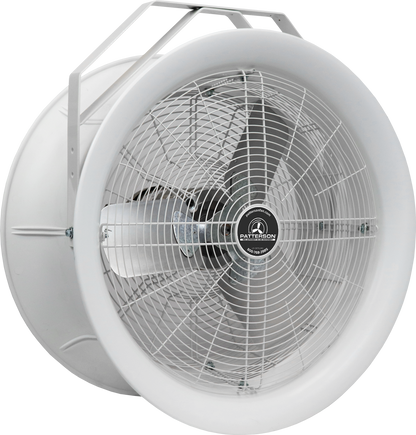

High-Velocity Fans
FEATURES
- Propeller: 3 Blade GalvAlum
- Fan Inlet/Outlet: High-Impact Polypropylene
- Finger Guards: OSHA-compliant wire guard
- Power Cord: 12’ Length
- Plug: Three-prong 115V (Standard)
- Speed Control Knob: (Optional) Needs shielded 22-gauge 3-conductor wire, commonly referred to as signal/alarm wire
- Decibels (Full Speed):
14” 63.1 @ 20’ - 73.1 @ 3’
18” 65.1 @ 20’ - 76.3 @ 3’
22” 66.5 @ 20’ - 77.6 @ 3’
- Coverage:
14” 1800 ft²
18” 2700 ft²
22” 3600 ft²
- Warranty: 2 Years
RESOURCES
Cage Fans
FEATURES
- Finger Guards: OSHA-compliant wire guard
- Power Cord: 12’ Length
- Plug: Three-prong 115V (Standard)
- Speed Control Knob: (Optional) Needs shielded 22-gauge 3-conductor wire, commonly referred to as signal/alarm wire
- Decibels (Full Speed - 30” Cage Fan):
67 @ 20’
77 @ 3’ - Warranty: 1 Year
RESOURCES
Mounting Options
Oscillating Fans
An industrial oscillating motor expands your fan’s reach, sweeping powerful airflow across wider work zones to eliminate hot spots, stagnant air, and uneven cooling.
- Fan Inlet/Outlet: High Impact Polypropylene
- Finger Guards: OSHA Compliant
- Power Cord (115V Only): 12’ Length (Switch Optional)
- Warranty: 2 Years
- Mounting Options: Pedestal Stroller or Column Wall
