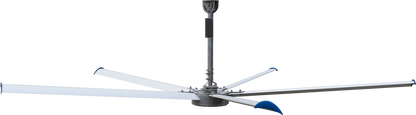

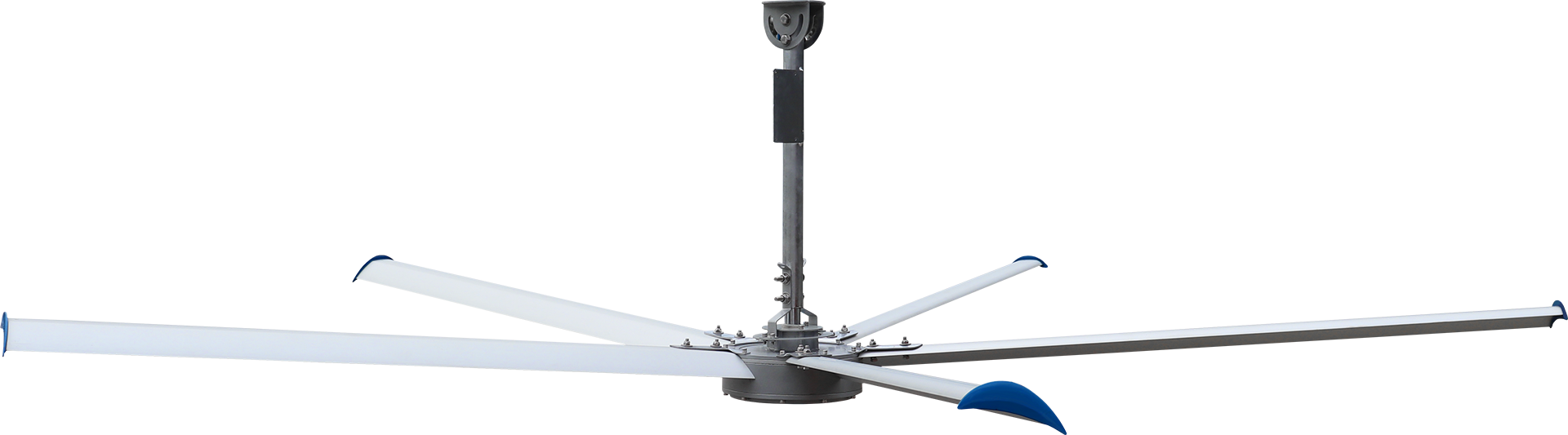

V-Series | Big HVLS Ceiling Fans
V8A-220
Our HVLS ceiling fans move massive volumes of air at low speed, delivering efficient, quiet cooling across large, open environments.
Need a different motor, color, or other custom option? Ordering large quantities? Call 800-768-3985 or Get a Custom Quote!
Advantages
Quiet Operation
Better Air Circulation
Year-Round Comfort
Reduce Humidity
Why go with HVLS Fans?

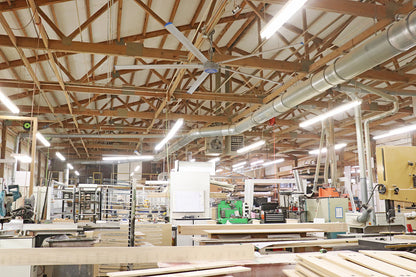

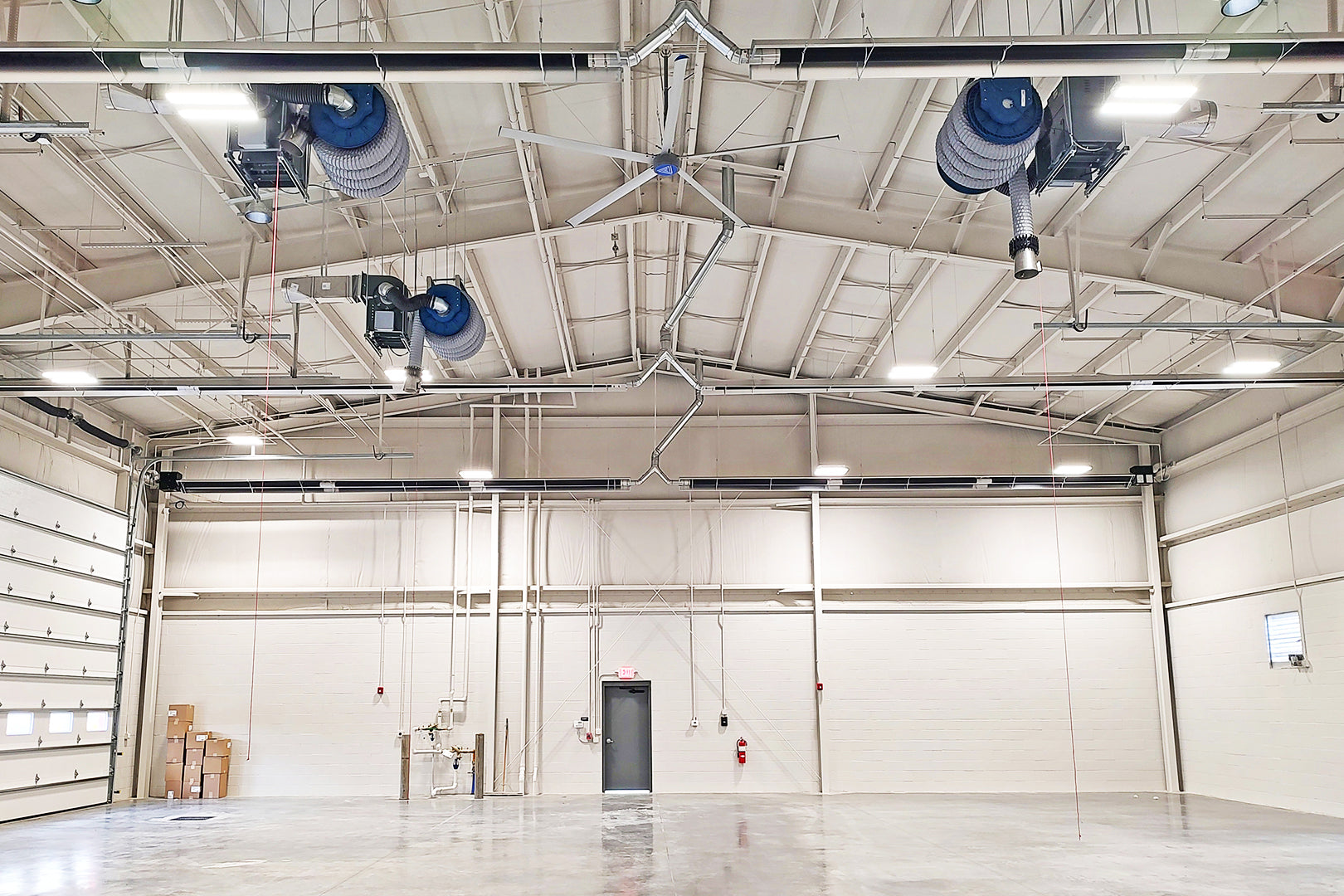

Big fans make a big difference. Patterson’s V-Series HVLS ceiling fans span over seven feet wide and quietly push huge amounts of air across your facility. Instead of fighting with noisy floor fans and messy cords, our ceiling-mounted fans free up floor space and take away trip hazards. Patterson HVLS fans also help cut down on ground moisture so you’re not worrying about losing traction on slick floors.
In the summer, the result is a cool, steady breeze that boosts employee comfort and productivity. During the colder months, Patterson HVLS fans gently push trapped warm air from the ceiling back down to the floor, reducing temperature variance and allowing your heating system to work less. That means lower energy bills and better comfort without additional equipment or high maintenance costs.
A Patterson HVLS fan isn’t just moving air, it’s making your whole place a better place to be. Invest once, and enjoy season after season of reliable, low-cost performance.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
Information
Share contact information, store details, and brand content with your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.

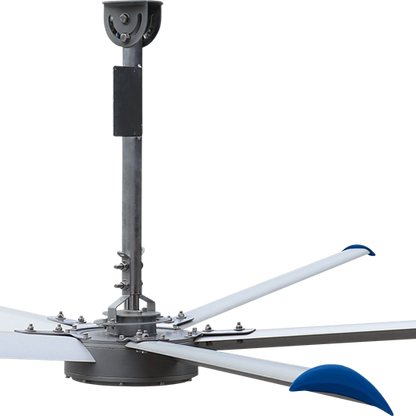

Key Features
- Direct Drive: zero gears means zero maintenance
- Wingtips: reduce airflow loss from blade tips, directing air downward
- Blades: contoured for maximum air movement
- Weight: no gearbox = less weight... much less
- Sound: <42 decibels - ideal for environments with sound concerns
- Forward, Reverse and Variable Speed
- Environment: IP66 VFD and IP54 motor - rated for indoor/outdoor covered spaces
- Safety System: multiple tiers of protection, perfect for the rough industrial setting

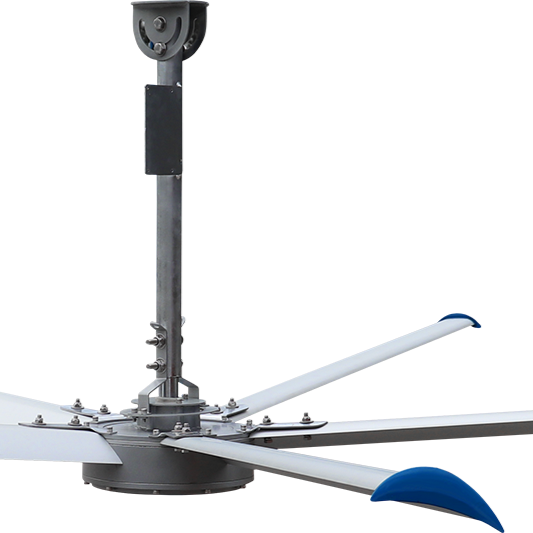

Motor
Blades
Safety Disk
Guy Wires
Safety Cable
Sizes & Specs
8 FT
SPECS
- Size: 8 ft Diameter
- Number of Blades: 5
- Industrial Spacing: 60 ft (18.3 m)
- Max Effective Area: 6850 ft² (636 m²)
- Max RPM: 120 RPM
- Hanging Weight: 77 lbs (30 kg)
- Motor: .5 HP (0.3 kW)
- Voltages: 220V Single-Phase, 208-230V Three-Phase, 460V Three-Phase
RESOURCES
12 FT
SPECS
- Size: 12 ft Diameter
- Number of Blades: 5
- Industrial Spacing: 70 ft (21.3 m)
- Max Effective Area: 12035 ft² (1118 m²)
- Max RPM: 80 RPM
- Hanging Weight: 92 lbs (42 kg)
- Motor: 1 HP (0.7 kW)
- Voltages: 220V Single-Phase, 208-230V Three-Phase, 460V Three-Phase
RESOURCES
16 FT
SPECS
- Size: 16 ft Diameter
- Number of Blades: 5
- Industrial Spacing: 90 ft (27.4 m)
- Max Effective Area: 16218 ft² (1506 m²)
- Max RPM: 80 RPM
- Hanging Weight: 112 lbs (51 kg)
- Motor: 1 HP (0.7 kW)
- Voltages: 220V Single-Phase, 208-230V Three-Phase, 460V Three-Phase
RESOURCES
20 FT
SPECS
- Size: 20ft Diameter
- Number of Blades: 6
- Industrial Spacing: 100 ft (30.5 m)
- Max Effective Area: 20000 ft² (1858 m²)
- Max RPM: 60 RPM
- Hanging Weight: 286 lbs (130 kg)
- Motor: 1.5 HP (1.1 kW)
- Voltages: 208-230V Three-Phase, 460V Three-Phase
RESOURCES
24 FT
SPECS
- Size: 24 ft Diameter
- Number of Blades: 6
- Industrial Spacing: 110 ft (33.5 m)
- Max Effective Area: 23732 ft² (2209 m²)
- Max RPM: 50 RPM
- Hanging Weight: 308 lbs (140 kg)
- Motor: 1.5 HP (1.1 kW)
- Voltages: 208-230V Three-Phase, 460V Three-Phase
RESOURCES

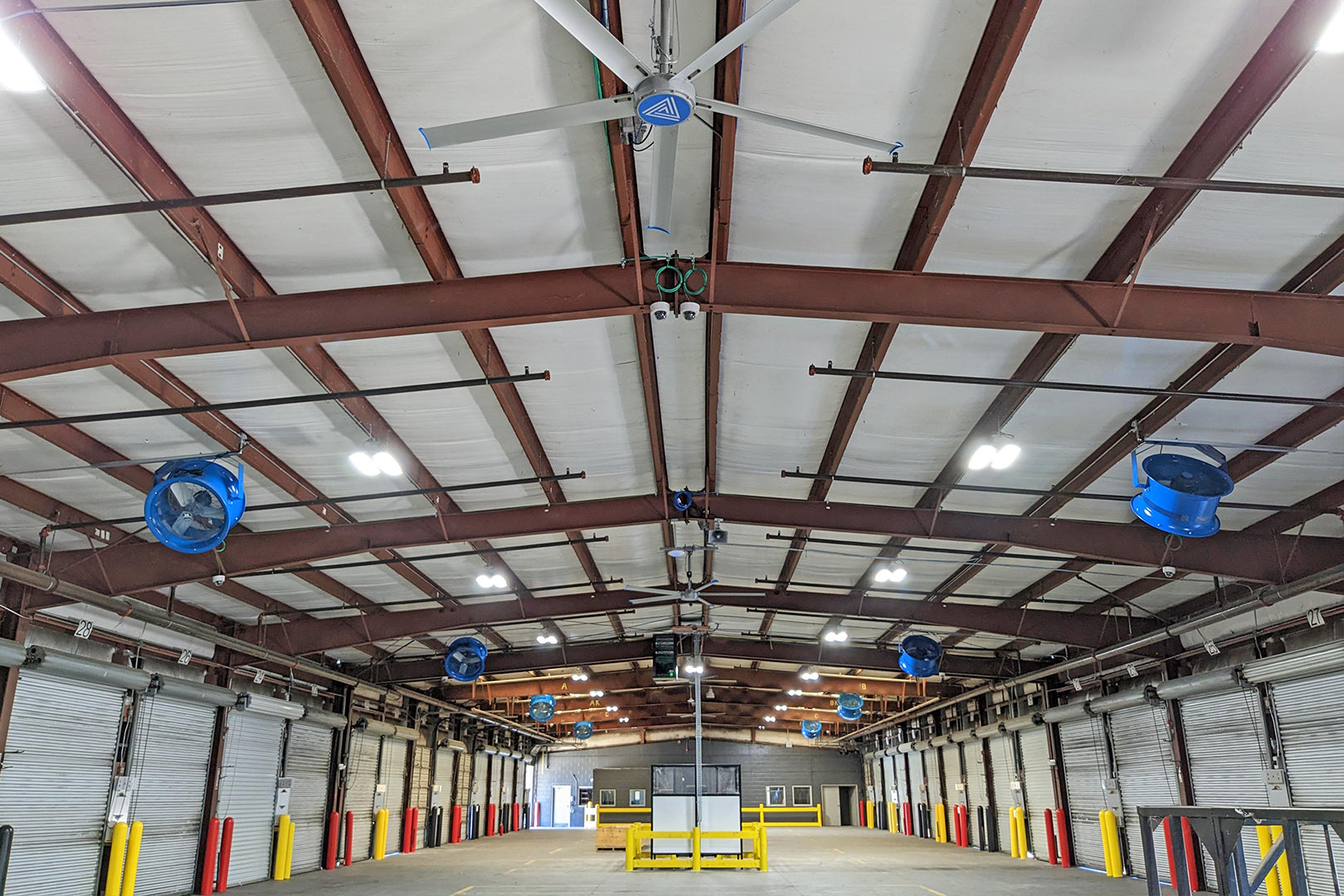

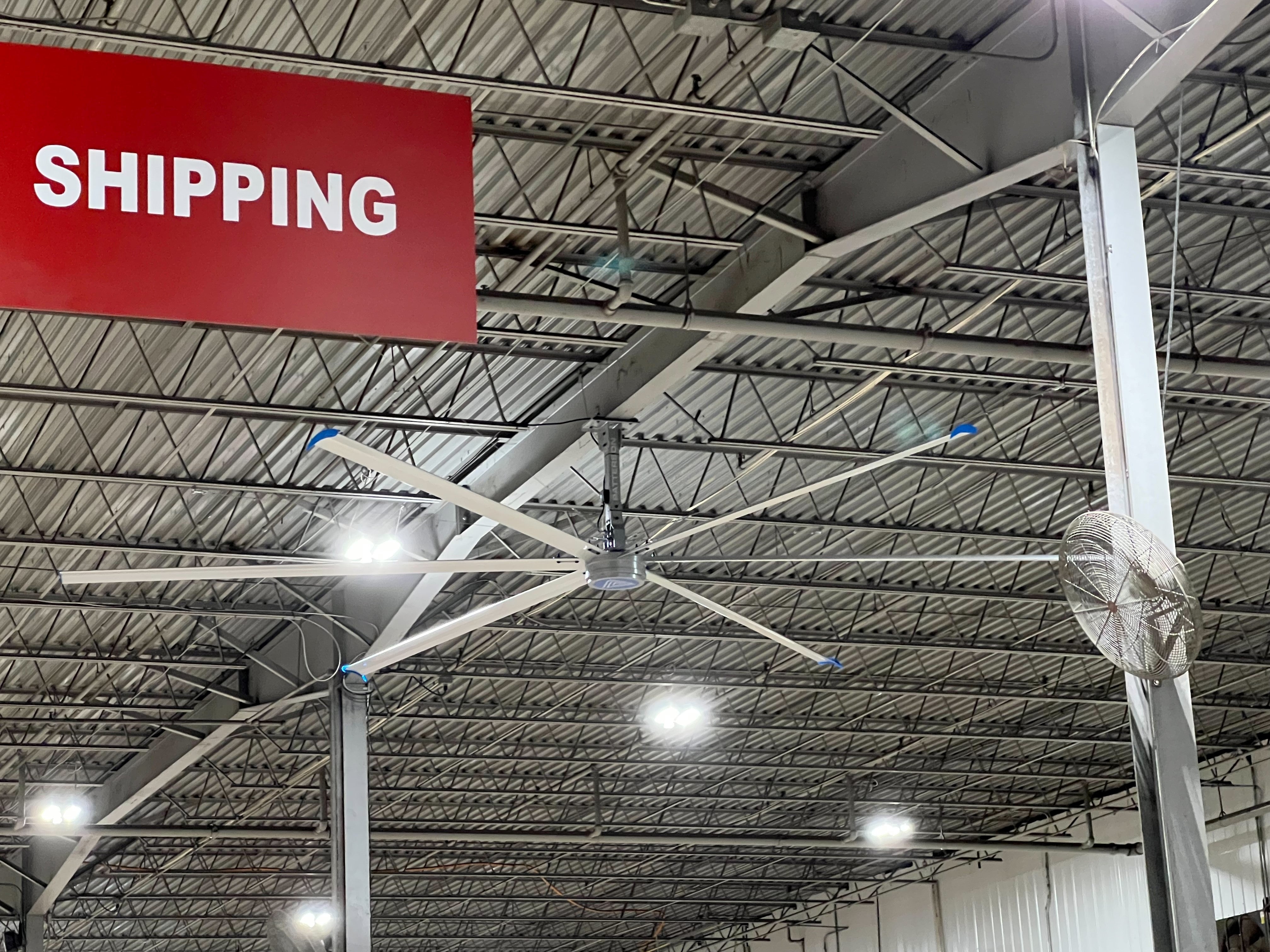

HVLS Ceiling Fan: Staging Area Air Movement
No matter the season, see how Patterson’s HVLS fans deliver consistent, large-scale air distribution from floor to ceiling.
