Cage Fans
FPC18A
Patterson Cage Fans are available in three sizes and are perfect for service repair shops, automotive facilities, or large warehouses.
Need a different motor, color, switch, or other custom option? Ordering large quantities? Call 800-768-3985 or Get a Custom Quote!
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Advantages
Portable
Multiple Speeds
Easily Adjustable for Targeted Cooling
Economical
Why Cage Fans?
A cage fan is a large, stationary, industrial air circulator much like the oscillating fan you may have in your home or office. Yet, this one is better! Our industrial cage fans made from steel are powder coated to ensure durability and longevity, and are great for areas that have noise level requirements but still need air movement. Their lower decibel readings provide quieter, individualized relief during the cooling season.

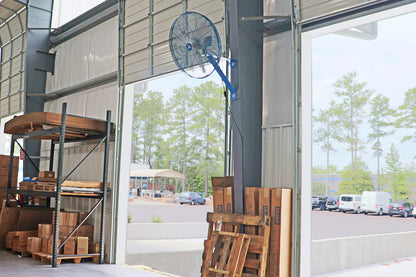

Our cage fans can be mounted to a sturdy pedestal and used at floor level or raised up, out of the way, and hung with a wall mount bracket. Patterson Cage Fans are available in three sizes and are perfect for service repair shops, automotive facilities, or large warehouses.
Key Features
- Three sizes to choose from: 18", 24", 30"
- ODP motor, 2-speed (TEAO available upon request)
- 115V, thermally protected
- Motor speed 750 RPM/1075 RPM
- OSHA-compliant blue, powder-coated guards
- Factory-wired 10' cord w/ inline cord switch

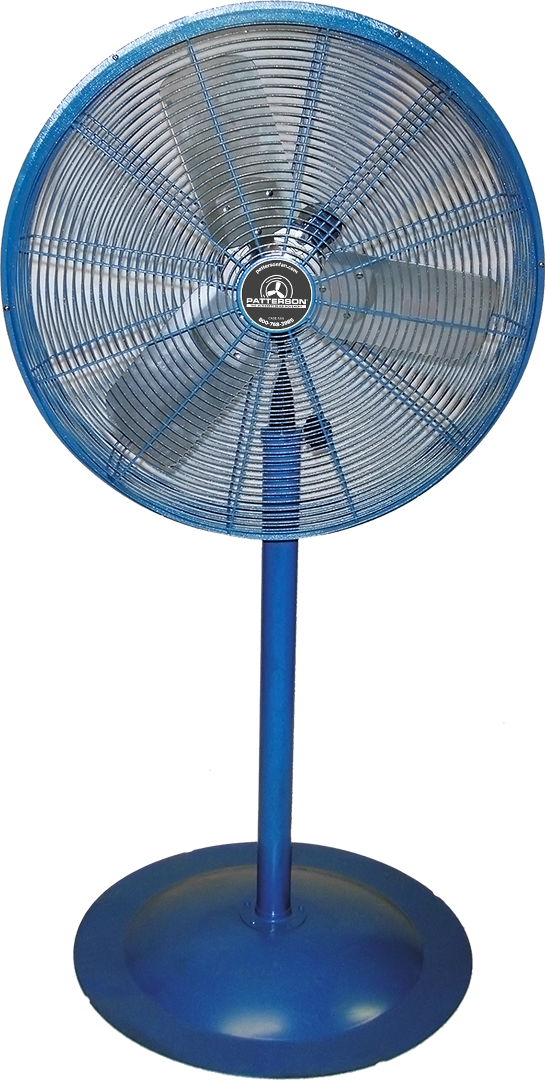

- Available pedestal mount (adjustable height 42” - 72”)

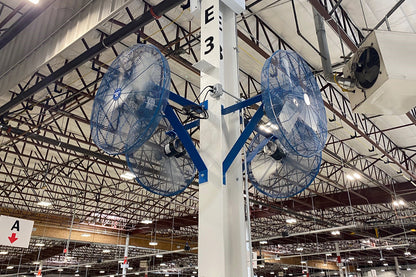

- Available column-wall mount
- Decibels on 30” fan:
Low: 67 @ 20’ - 77 @ 3’
High: 71 @ 20’ - 83 @ 3’
Motor
Blades
Guards
Sizes & Specs
18 IN
SPECS
- CFM: 3010/4600
- HP: 1/2
- Phase: 115V 1Ø
- Running Amps: 3.7
- Weight: 43 lbs
MOUNTING OPTIONS
- CW: Column-Wall
- PB: Pedestal Base (adjustable height)
RESOURCES
24 IN
SPECS
- CFM: 4000/4600
- HP: 1/2
- Phase: 115V 1Ø
- Running Amps: 5.6
- Weight: 50 lbs
MOUNTING OPTIONS
- CW: Column-Wall
- PB: Pedestal Base (adjustable height)
RESOURCES
30 IN
SPECS
- CFM: 8600/9700
- HP: 1/2
- Phase: 115V 1Ø
- Running Amps: 5.6
- Weight: 54 lbs
MOUNTING OPTIONS
- CW: Column-Wall
- PB: Pedestal Base (adjustable height)
