Stainless Steel Fans
Extend the life of your equipment! Industrial washdown areas, food processing plants, chemical facilities, and high-moisture zones demand materials that can stand up to frequent cleaning and exposure to corrosive elements. Patterson's stainless steel construction ensures these fans resist rust, corrosion, and wear.
Need a different motor, switch, or other custom option? Ordering large quantities? Call 800-768-3985 or Get a Custom Quote!
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Advantages
Corrosion Resistance
Temperature Tolerance
Structural Integrity
Hygienic Properties
Why Choose Stainless Steel?

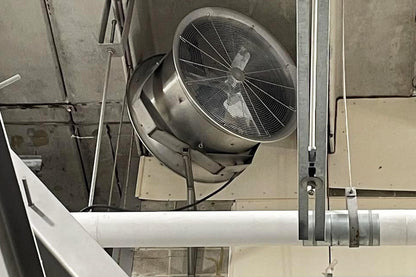

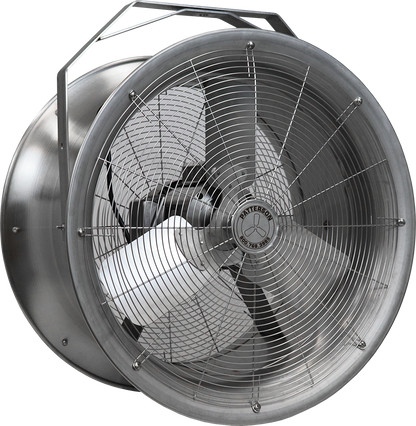

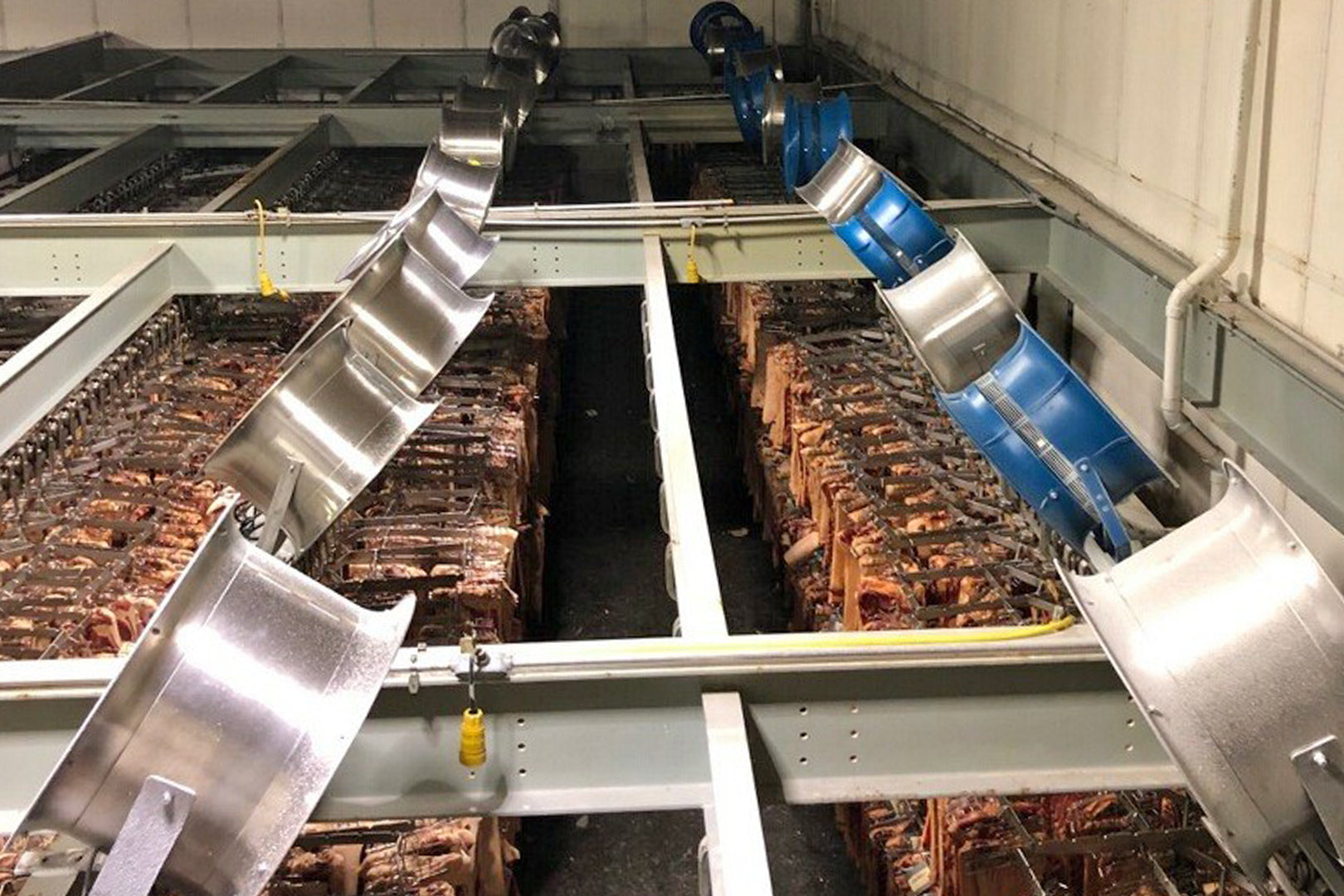

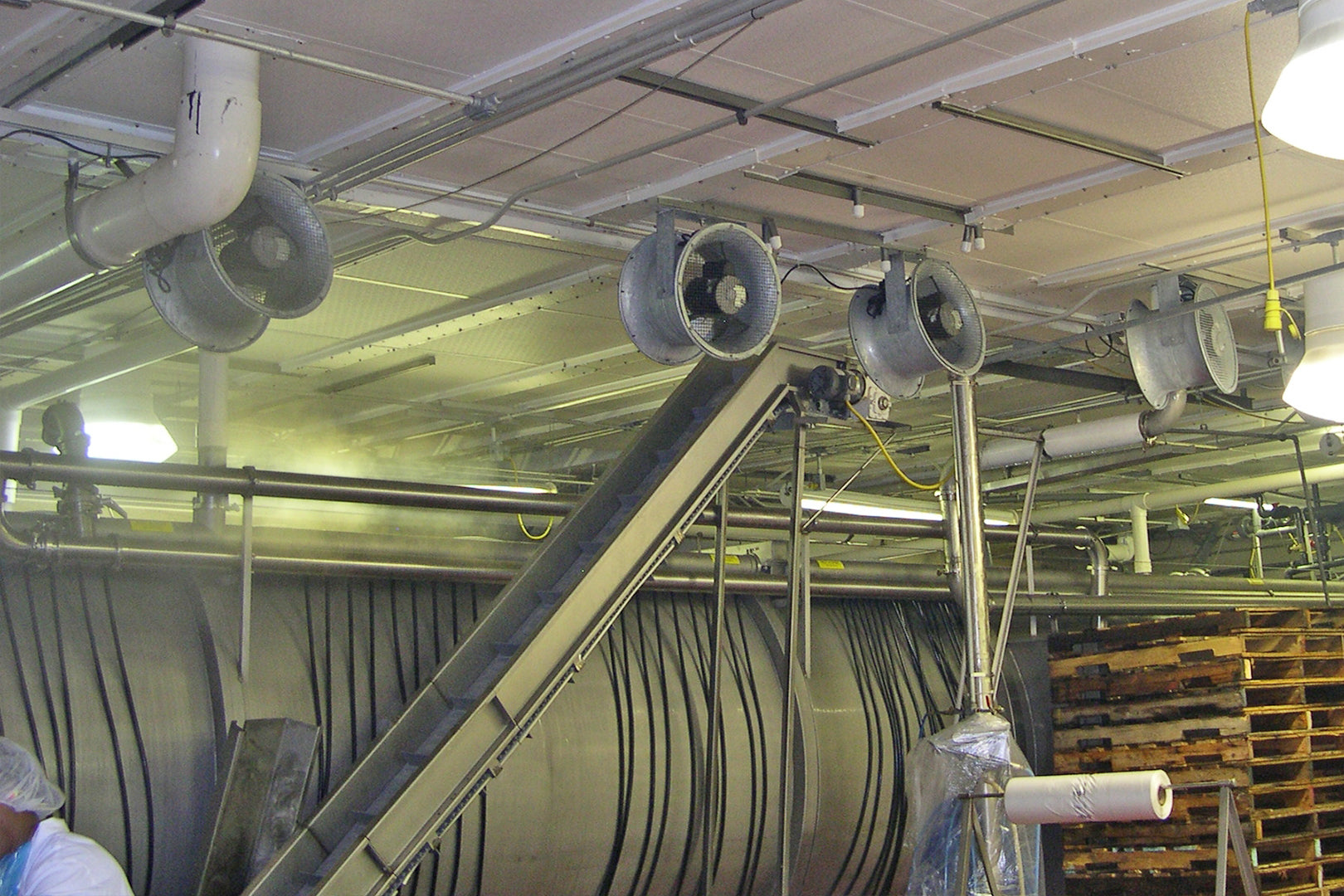

Not every environment can be handled with a standard high-velocity polypropylene fan, which is why we offer other durable materials. Often referred to as barrel, turbo, hurricane, or air cannon fans, Patterson’s Stainless Steel High-Velocity Fans are designed for the toughest jobs where chemicals, heat, and moisture are part of daily operations. In facilities like metal pickling lines, where caustic acids and corrosive fumes are present, stainless-steel construction is a necessity. These fans also thrive in car wash facilities exposed to harsh detergents, food processing centers requiring high-heat tolerance and washdown-ready equipment, and agricultural or livestock areas where durability against dust, moisture, and constant cleaning is essential.
Stainless steel ensures long-lasting performance, superior hygiene, and reliable airflow where ordinary fans simply can’t survive. Upgrade your space with Patterson’s premium high-velocity stainless steel fans, where durability meets style.
Sizes & Specs
18 IN
FEATURES
- Motor: Marathon TEAO or Stainless Steel Washdown
- Motor speed: 1075 RPM
- Finger Guards: OSHA Compliant Stainless Steel Guards
- Power Cord (115V Only): Factory Wired 10’ Cord
- Warranty: 1 year
SPECS
- CFM: 3010/4600
- HP: 1/2
- Voltage: 115V 1Ø
- Running Amps: 3.7
- Weight: 43 lbs
24 IN
FEATURES
- Motor: Marathon TEAO or Stainless Steel Washdown
- Motor speed: 1075 RPM
- Finger Guards: OSHA Compliant Stainless Steel Guards
- Power Cord (115V Only): Factory Wired 10’ Cord
- Warranty: 1 year
SPECS
- CFM: 4000/6300
- HP: 1/2
- Voltage: 115V 1Ø
- Running Amps: 5.6
- Weight: 50 lbs
30 IN
FEATURES
- Motor: Marathon TEAO or Stainless Steel Washdown
- Motor speed: 1075 RPM
- Finger Guards: OSHA Compliant Stainless Steel Guards
- Power Cord (115V Only): Factory Wired 10’ Cord
- Warranty: 1 year
SPECS
- CFM: 8600/9700
- HP: 1/2
- Voltage: 115V 1Ø
- Running Amps: 5.6
- Weight: 54 lbs
Sizes & Specs
14 IN
FEATURES
- Propeller: 14” Diameter, 3-Blade Galvalum, 37°
- Fan Inlet/Outlet: #304 Polished Stainless Steel Hull
- Finger Guards: OSHA-Compliant, Stainless Steel Spiral
- Power Cord (115V Only): 12’ Length
- RPM: 1725
- Decibels: 66.5 @ 20’ - 73.9 @ 3’
- Coverage: 1800 ft²
- Warranty: 2 Years
SPECS
- CFM: 2600
- HP: 1/4
- Width: 20”
- Depth: 16”
- Air Throw: 60’
- Weight: 35 lbs
RESOURCES
24 IN
FEATURES
- Propeller: 18” Diameter, 3-Blade Galvalum, 33°
- Fan Inlet/Outlet: #304 Polished Stainless Steel Hull
- Finger Guards: OSHA-Compliant, Stainless Steel Spiral
- Power Cord (115V Only): 12’ Length
- RPM: 1725
- Decibels: 71.2 @ 20’ - 77.9 @ 3’
- Coverage: 2700 ft²
- Warranty: 2 Years
SPECS
- CFM: 3800
- HP: 1/2
- Width: 24”
- Depth: 16”
- Air Throw: 80’
- Weight: 56 lbs
RESOURCES
22 IN
FEATURES
- Propeller: 21” Diameter, 3-Blade Galvalum, 19°
- Fan Inlet/Outlet: #304 Polished Stainless Steel Hull
- Finger Guards: OSHA-Compliant, Stainless Steel Spiral
- Power Cord (115V Only): 12’ Length
- RPM: 1725
- Decibels: 73.6 @ 20’ - 81.2 @ 3’
- Coverage: 3600 ft²
- Warranty: 2 Years
SPECS
- CFM: 5570
- HP: 1/2
- Width: 29”
- Depth: 16”
- Air Throw: 100’
- Weight: 69 lbs
RESOURCES
26 IN
FEATURES
- Propeller: 26” Diameter, 3-Blade Galvalum, 18°
- Fan Inlet/Outlet: #304 Polished Stainless Steel Hull
- Finger Guards: OSHA-Compliant, Stainless Steel Spiral
- Power Cord (115V Only): 12’ Length
- RPM: 1800*/1200
- Decibels: 80.8 @ 20’ - 85.2 @ 3’ (1800)
75.7 @ 20' - 81.3 @ 3' (1200 - Coverage: 6100 ft²
- Warranty: 2 Years
SPECS
- CFM: 7650
- HP: 1
- Width: 33”
- Depth: 18.5”
- Air Throw: 150’
- Weight: 93 lbs
RESOURCES
30 IN
FEATURES
- Propeller: 30” Diameter, 3-Blade Galvalum, 15°
- Fan Inlet/Outlet: #304 Polished Stainless Steel Hull
- Finger Guards: OSHA-Compliant, Stainless Steel Spiral
- Power Cord (115V Only): 12’ Length
- RPM: 1800*/1200
- Decibels: 82.2 @ 20’ - 85.5 @ 3’ (1800)
75.7 @ 20' - 81.3 @ 3' (1200 - Coverage: 12,000 ft²
- Warranty: 2 Years
SPECS
- CFM: 12,000
- HP: 1
- Width: 37”
- Depth: 22”
- Air Throw: 200’
- Weight: 125 lbs
